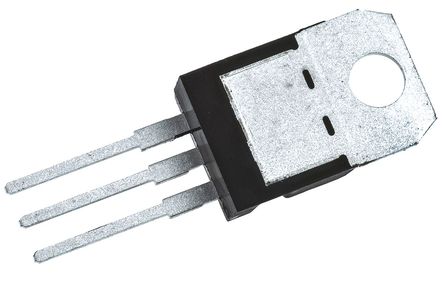

Image is for your reference only,please check specifications for details
- L7805ACV - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC142145
-
Category:Voltage Regulator
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator, 7805, Fixed, Precision, 10V To 35V In, 5V And 1.5A Out, TO-220-3
-
Stock Locations:
-
Availability:210 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.31
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2 % output voltage tolerance
L7805ACV Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 20.0V (max) |
| Output Voltage | 5 V |
| Output Current | 1.5 A |
| Supply Current | 6 mA |
| Number of Positions | 3 Position |
| Quiescent Current | 4.3 mA |
| voltage rating | 2V @1A |
| Input Voltage (Max) | 35 V |
| Input Voltage (Min) | 10 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 35 V |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 9.15 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
