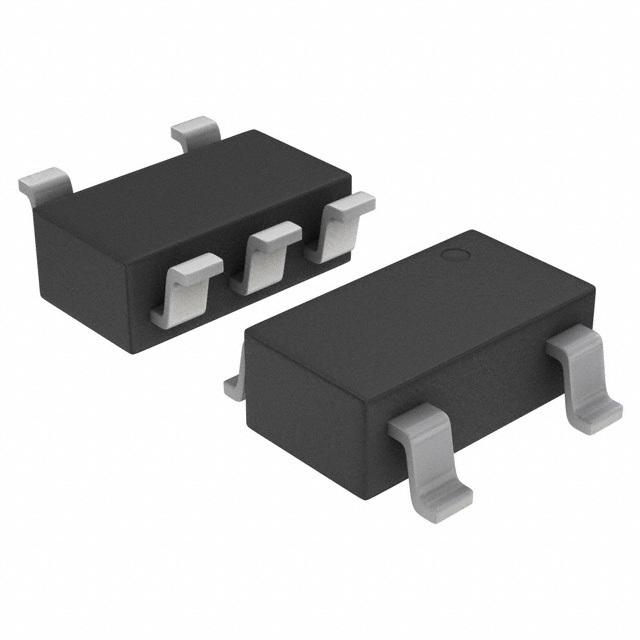

Image is for your reference only,please check specifications for details

NCP1450ASN50T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC97395831
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller, Voltage Mode, 600mV to 6V, 1 Output, Boost, 216kHz, TSOP-5
Stock Locations:
Availability:
75 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.85

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1450ASN50T1G is a PWM step-up DC-DC Switching Controller IC, specially designed for powering portable equipment from one or two cells battery packs. The NCP1450ASN50T1G series have a driver pin, EXT pin, for connecting to an external transistor. Large output currents can be obtained by connecting a low ON-resistance external power transistor to the EXT pin. The device will automatically skip switching cycles under light load condition to maintain high efficiency at light loads. With only six external components, this series allows a simple means to implement highly efficient converter for large output current applications.
86% at IO = 200mA VIN = 2.0V, VOUT = 3.0V, 88% at IO = 400mA VIN = 3.0V, VOUT = 5.0V High Efficiency
Low Startup Voltage of 0.9V Typical at IO = 1.0mA
Operation Down to 0.6V
1.9, 2.7, 3.0, 3.3 and 5.0V (with High) Standard Voltages
±2.5% Accuracy
Low Conversion Ripple
High Output Current up to 1000mA (3.0V Version at VIN = 2.0V, L = 10µH, COUT = 220µF)
Fixed Frequency Pulse Width Modulation (PWM) at 180kHz
Chip Enable Pin with On-chip 150nA Pullup Current Source
Maximum ratings are those values beyond which device damage can occur.

Show

NCP1450ASN50T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Frequency	180 kHz
Supply Voltage (DC)	6.00V (max)
Voltage Rating (DC)	60.0 V
Current Rating	4.00 A
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	1 A
Number of Positions	5 Position
Power Dissipation	500 mW
Switching Frequency	180 kHz
Topology	Step-Up
Duty Cycle	90 %
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0.6 V
Output Current (Max)	1 A
Maximum Duty Cycle	0.8
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Accuracy	2.5 %
Supply Voltage (Max)	6 V
Input Voltage	0.6V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
