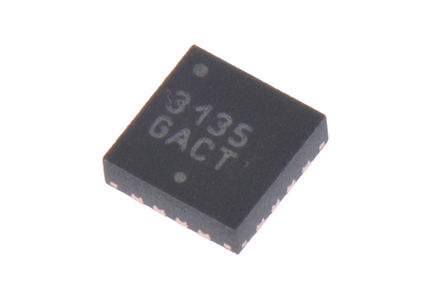

NCP3135MNTXG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC37947269
Category:
DC to DC Converter
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.9V to 5.5V Synchronous Step Down Single-Out 0.6V to 4.62V 5A 16Pin QFN EP T/R
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this NCP3135MNTXG DC to DC converter from ON Semiconductor.

Show

NCP3135MNTXG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Number of Outputs	1 Output
Output Voltage	0.6V ~ 4.62V
Output Current	5 A
Number of Positions	16 Position
Switching Frequency	1.1 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.9 V
Output Voltage (Max)	4.62 V
Output Voltage (Min)	600 mV
Output Current (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	2.9 V
Input Voltage	5.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
