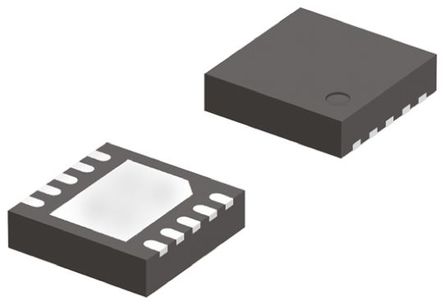

NCP3337MN330R2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC31656326
Category:
Voltage Regulator
Package:
DFN-10
Datasheet:
Datasheet 3D Model
Description:
NCP3337MN330R2G, LDO Voltage Regulator, 800mA, 3.3V +/-0.9%, 2.9to12 Vin, 10Pin DFN
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.14

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP3337MN330R2G is a 3.3V fixed output high performance low-dropout (LDO) Linear Regulator with accuracy of ±0.9% over line and load and ultra-low quiescent current and noise. This unique device is guaranteed to be stable without a minimum load current requirement and stable with any type of capacitor as small as 1µF. The device also comes equipped with sense and noise reduction pins to increase the overall utility of the device.
±0.9% at 25°C High accuracy over line and load
No minimum output current required for stability
Low Noise (33µVrms with 10nF Cnr and 52Vrms without Cnr)
<1mA Low shutdown current
Reverse bias protected
Thermal shutdown protection
Current limitation
Stable with any type of capacitor (including MLCC)
Power good output

Show

NCP3337MN330R2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	DFN-10
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	700 mA
Number of Positions	10 Position
Polarity	P-Channel
Quiescent Current	0.22 mA
voltage rating	620 mV
Switching Frequency	100 kHz
Input Voltage (Max)	12 V
Input Voltage (Min)	2.9 V
Output Current (Max)	800 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.9 %
Input Voltage	≤12 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
