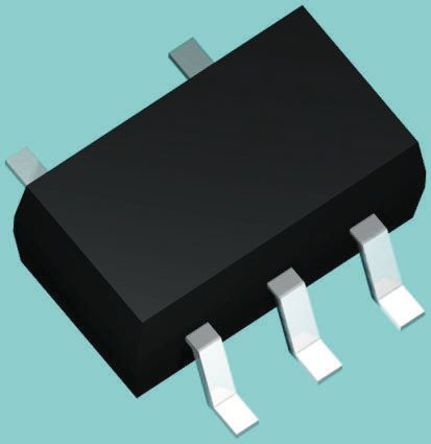

Image is for your reference only,please check specifications for details

NCP4681DSQ33T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC44294804
Category:
Voltage Regulator
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
Fixed LDO Voltage Regulator, 1.4V to 5.25V, 250mV Dropout, 3.3Vout, 150mAout, SC-70-5
Stock Locations:
Availability:
1,695 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP4681DSQ33T1G is a 3.3V fixed output CMOS Linear Regulator with 150mA output current capability and ultra-low supply currents (1µA typical) The device is easy to use and include output current protection and a fully integrated soft-start circuit to minimize inrush current and to ensure no output voltage overshoot. The device includes an Enable function to reduce supply current by using a standby mode, thereby offering the lowest possible current consumption for battery powered applications in active mode.
±1% Output voltage accuracy
0.02%/V Line regulation (typical)
0.1µF or more Stable with ceramic capacitors
Current fold back protection

Show

NCP4681DSQ33T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	150 mA
Supply Current	2 µA
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	380 mW
Quiescent Current	2 µA
voltage rating	250 mV
Input Voltage (Max)	5.25 V
Input Voltage (Min)	1.4 V
Output Voltage (Min)	3.3 V
Output Current (Max)	180 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	380 mW
Accuracy	±1 %
Input Voltage	5.25V ~ 1.4V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
