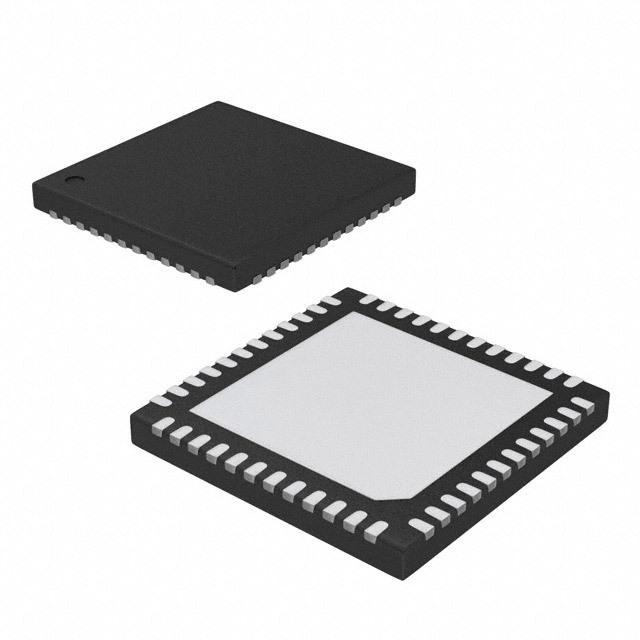

Image is for your reference only,please check specifications for details
- NCP81109FMNTXG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC67143600
-
Category:DC to DC Converter
-
Package:QFN-48
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC Single Step Down 5Vto 20V 48Pin QFN T/R
-
Stock Locations:
-
Availability:303 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.21
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Increase the chance of producing a high optimized and cost effective power management system when you implement this NCP81109FMNTXG specialized power IC from ON Semiconductor. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This USB PWM controller has a minimum operating temperature of -10 °C and a maximum of 100 °C.
NCP81109FMNTXG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | QFN-48 |
| Number of Outputs | 1 Output |
| Output Current | 14 A |
| Number of Positions | 48 Position |
| Power Dissipation | 4590 mW |
| Switching Frequency | 500kHz ~ 1.2MHz |
| Input Voltage (Max) | 20 V |
| Input Voltage (Min) | 5 V |
| Output Voltage (Max) | 2.3 V |
| Output Voltage (Min) | 0 V |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Power Dissipation (Max) | 4590 mW |
| Show | |
| Size-Height | 0.95 mm |
| Operating Temperature | -10℃ ~ 100℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
