NCS2200SN2T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8073763
Category:
Comparator, Analog Comparator IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:

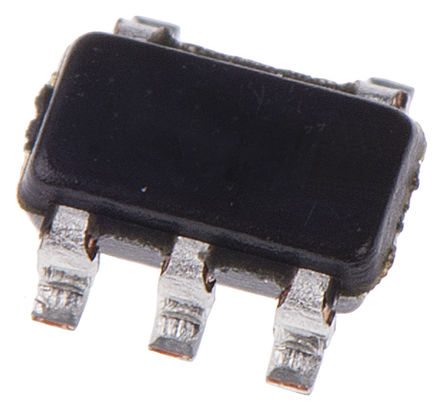

ON SEMICONDUCTOR NCS2200SN2T1G Analogue Comparator, Low Voltage, 1, 1.1µs, 850mV to 6V, SOT-23, 5Pins New
Stock Locations:
Availability:
9,684 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.55

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCS2200 series is an in industry first sub-one volt, low power comparator family. These devices consume only 10uA of supply current. They are guaranteed to operate at a low voltage of 0.85V which allows them to be used in systems that require less than 1.0V and are fully operational up to 6.0V which makes them convenient for use in both 3.0V and 5.0V systems. Additional features include no output phase inversion and overdriven inputs, internal hysteresis, which allows for clean output switching, and rail-to-rail input and output performance. The NCS2200 series is available in the tiny SOT23-5. There are eight options featuring two industry standard pinouts. Additionally, the NCS2200 and NCS2202 are available in the SC70-5 package. The NCS2200 is also available in the tiny DFN 2x2.2 package. The NCS2200A is available in UDFN 1.2x1.0 package. When the enable pin is pulled low (output tri-state mode), current consumption is typically 0.3uA. This allows the user to implement these devices in power sensitive applications such as portable electronics.
Features
---
|
Operating Voltage of 0.85 V to 6.0 V
Rail-to-rail Input/Output Performance
Low Supply Current of 10 µA
No Phase Inversion/Glitchless transitioning in or out of Tri-State Mode
Complementary or Open Drain Output Configuration
Available with the Enable Function

Show

NCS2200SN2T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	850mV (min)
Halogen Free Status	Halogen Free
Output Current	70.0 mA
Supply Current	0.015 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	70 dB
Quiescent Current	17 µA
Thermal Resistance	238 ℃/W
Input Offset Voltage	5 mV
Input Bias Current	10 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.85V ~ 6V
Supply Voltage (Max)	6 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
