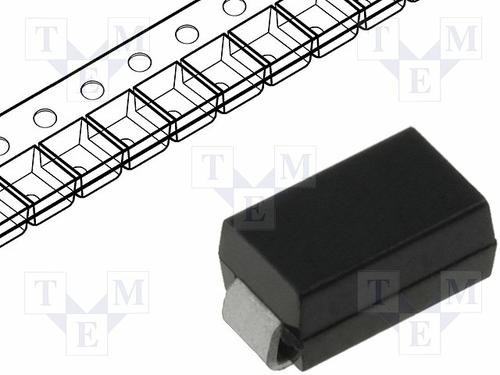

Image is for your reference only,please check specifications for details
- P4SMAJ14A - Diotec Semiconductor
-
Manufacturer:Diotec Semiconductor
-
ManyChip's Part#:MC17446303
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:SMD Diodo TVS Unidirectional 14V 400W P4SMAJ14A SMD DO-214AC/SMA DIOTEC
-
Stock Locations:
-
Availability:2,765 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.27
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Pulse power dissipation 400 W
- Maximum stand-off voltage 6.5...170 V
- Plastic case ~ SMA
- Weight approx. 0.07 g
- Plastic material has UL classification 94V-0
P4SMAJ14A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC |
| Breakdown Voltage | 15.6.17.3 V |
| Power Dissipation | 400 W |
| Clamping Voltage | 23.2 V |
| Test Current | 1 mA |
| Peak Pulse Power | 400 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -50 ℃ |
| Junction Temperature | -50℃ ~ 150℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
