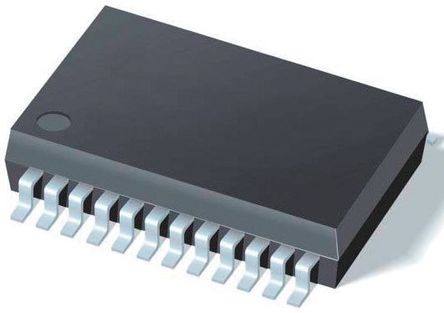

Image is for your reference only,please check specifications for details

NCV7719DQR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC36934165
Category:
Motor Driver
Package:
SSOP-24
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV7719DQR2G Motor Driver, Octal, Half Bridge, 3.15V to 5.25V supply, 550mA/8Outputs, SSOP-24
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV7719DQR2G is a 8-channel Half-bridge Driver with protection features designed specifically for industrial motion control applications. The product has independent controls and diagnostics and the drivers can be operated in forward, reverse, brake and high impedance states. The device is controlled via a 16-bit SPI interface and is daisy chain compatible.
Low quiescent current sleep mode
Integrated freewheeling protection (LS and HS)
16-bit Frame error detection
Daisy chain compatible with multiple of 8-bit device
Under-voltage and over-voltage lockout
Discriminated fault reporting
Overcurrent protection
Over-temperature protection
Underload detection
5MHz SPI communication
0.55A Peak current
1R (typical) RDS(on)

Show

NCV7719DQR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SSOP-24
Supply Voltage (DC)	3.15V (min)
Number of Outputs	8 Output
Output Current	550 mA
Number of Positions	24 Position
Switching Frequency	5 MHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.15V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	3.15 V
	Show
Size-Length	8.64 mm
Size-Width	3.9 mm
Size-Height	1.7 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
