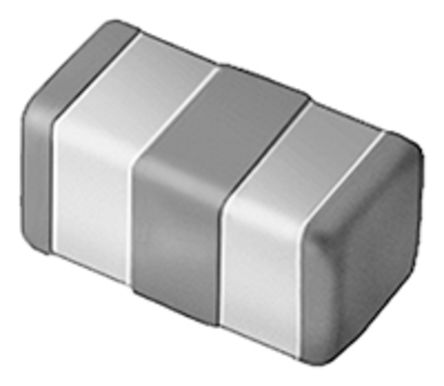

Image is for your reference only,please check specifications for details
- NFL18ST307X1C3D - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC14296907
-
Category:RFI Shielding
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:LC (T-Type) EMI Filter 3rd Order Low Pass 1Channel L = 62nH, C = 18pF 200mA 0603 (1608 Metric), 3 PC Pad
-
Stock Locations:
-
Availability:10,522 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.25
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 62nH, C = 18pF 200mA 0603 (1608 Metric), 3 PC Pad
NFL18ST307X1C3D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Current Rating | 200 mA |
| Capacitance | 18 pF |
| Capacitance Tolerance | ±20 % |
| Number of Channels | 1 Channel |
| Inductance | 62 nH |
| Shielding | No |
| Current Rating (Max) | 0.2 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 V |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
