NLAS2750MUTAG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC21393763
Category:
Analog Switch Ic, Analog Switch Multiplexer
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:

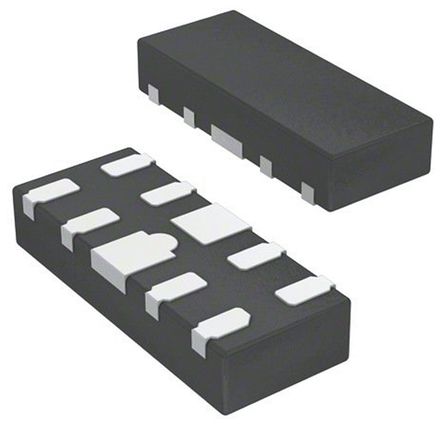

ON SEMICONDUCTOR NLAS2750MUTAG Analogue Switch, Dual Channel, SPDT, 2Channels, 1.3Ω, 1.8V to 5V, UQFN, 10Pins
Stock Locations:
Availability:
1,403 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.41

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NLAS2750MUTAG is a single-pole double-throw (SPDT) dual low on-resistance Analog Switch operates from a single 1.8 to 5V power supply. It is a bi-directional switch that can switch a negative voltage swing audio signal without requiring a coupling capacitor. With a single power supply, the audio signal can swing over the range from -2.5V to VCC. It is capable to switch negative swing audio signals without requiring a DC blocking capacitor.
Low on-resistance
Low voltage digital control logic
Low power consumption

Show

NLAS2750MUTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Number of Outputs	4 Output
Supply Current	50 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Power Dissipation	0.2 W
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	44 MHz
Power Dissipation (Max)	200 mW
Supply Voltage	1.8V ~ 5V
	Show
Size-Length	1.8 mm
Size-Width	1.4 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
