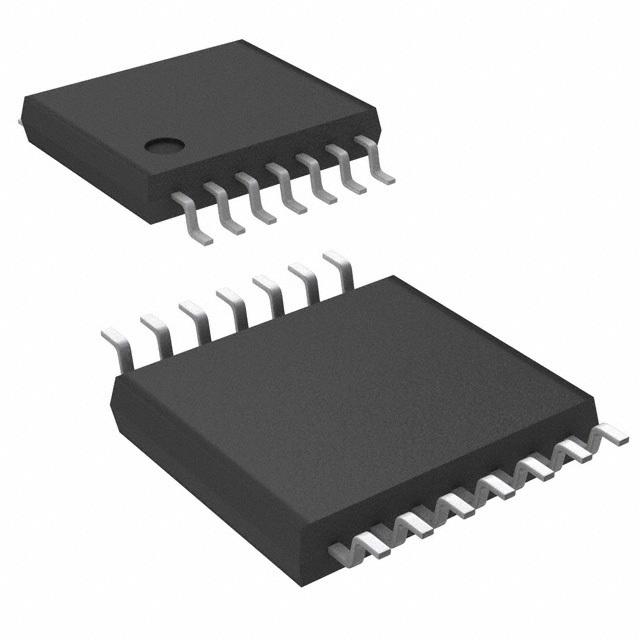

Image is for your reference only,please check specifications for details
- TSV914AIPT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC24795673
-
Category:Amplifier, Buffer IC
-
Package:TSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:TSV914A Series 5.5V 8MHz Rail-to-Rail Input/Output Operational Amp - TSSOP-14
-
Stock Locations:
-
Availability:213 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.1
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TSV911/2/4 family of single, dual & quad operational amplifiers offers low voltage operation and rail-to-rail input and output.
- Features
- ■ Rail-to-rail input and output
- ■ Wide bandwidth
- ■ Low power consumption: 1.1mA max.
- ■ Unity gain stability
- ■ High output current: 35mA
- ■ Operating from 2.5V to 5.5V
- ■ Low input bias current
- ■ ESD Internal protection≥5kV
- ■ Latch-up immunity
- Applications
- ● Battery-powered applications
- ● Portable devices
- ● Signal conditioning
- ● Active filtering
- ● Medical instrumentation
TSV914AIPT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | TSSOP-14 |
| Output Current | 35 mA |
| Supply Current | 820 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Common Mode Rejection Ratio | 82 dB |
| Slew Rate | 4.50 V/μs |
| Gain Bandwidth Product | 8 MHz |
| Input Offset Voltage | 1.5 mV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 8 MHz |
| Minimum CMRR Range | 62 dB |
| Supply Voltage | 2.5V ~ 5.5V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
