NLAS3157MX3TCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC42235314
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
XFDFN-6
Datasheet:
Datasheet 3D Model
Description:

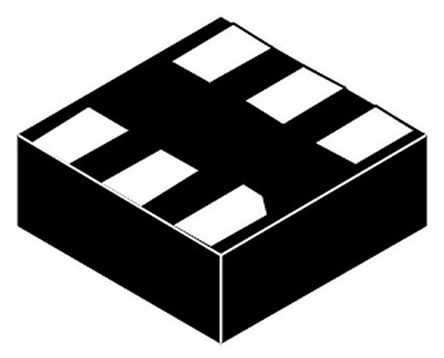

ON SEMICONDUCTOR NLAS3157MX3TCG Analogue Switch, SPDT, 1Channels, 23.2Ω, 1.65V to 4.5V, ULLGA, 6Pins New
Stock Locations:
Availability:
1,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NLAS3157MX3TCG is a low voltage SPDT mux/demux analogue switch 6 pin ULLGA package. This is an advanced high speed single-pole double-throw (SPDT) CMOS switch. It can be used as an analogue switch or as a low-delay bus switch. Break-before-make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. The control input, S, is independent of supply voltage line switch in an ultra-small footprint.
High speed tPD = 0.25ns (max) at VCC = 4.5V
8.5ohm (typ ) RON at VCC = 4.2V
7.5pF (typ) con at VCC = 3.3V
1.65V to 4.5V VCC range

Show

NLAS3157MX3TCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	XFDFN-6
Number of Outputs	1 Output
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	1.5 W
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1 GHz
Power Dissipation (Max)	1.5 mW
Supply Voltage	1.65V ~ 4.5V
	Show
Size-Length	1 mm
Size-Width	1 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
