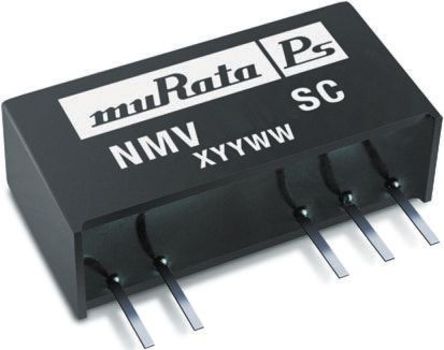

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NMV0515SC is a 2-output 1W board-mount isolated DC/DC Converter for on-board distributed power systems. It is ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switching noise. The rated power may be drawn from a single pin provided the total load does not exceed 1W.
No heat sink required
Industry standard pin-out
Power sharing on dual output
Fully encapsulated with toroidal magnetics
No external components required
No electrolytic or tantalum capacitors
3kVDC isolation (1 minute) hi-pot test
Power density up to 0.85W/cm³
Footprint from 1.17cm²
8.5% Maximum load regulation
8.2mVp-p Maximum ripple and noise
79% Efficiency
27pF Isolation capacitance

Show

NMV0515SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	SIP-7
Supply Voltage (DC)	5.00 V
Power Rating	1 W
Number of Outputs	2 Output
Input Voltage (DC)	4.50V ~ 5.50V
Output Voltage	15 V
Output Current	34 mA
Flammability Rating	UL 94 V-0
Output Power	1 W
Isolation Voltage	3 kV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	4.5 v
Output Current (Max)	33mA, 33mA
Input Power (Max)	1 W
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Input Voltage	4.5V ~ 5.5V
	Show
Size-Length	19.5 mm
Size-Width	6 mm
Size-Height	10 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
