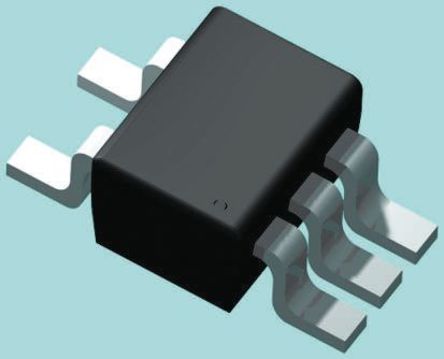

Image is for your reference only,please check specifications for details

NP0080TAT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC71519366
Category:
Thyristor
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NP0080TAT1G TVS Thyristor, Surge Protector, 8V, 5Pins, TSOP, Surge Protector, 20V, 1Circuits
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This NP0080TAT1G SCR thyristor from ON Semiconductor can be used to protect against surges with a faster reaction time. This SCR thrysitor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its repetitive peak forward blocking voltage is 8 V, while its repetitive peak reverse voltage is 8 V.

Show

NP0080TAT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Capacitance	13 pF
Halogen Free Status	Halogen Free
Number of Circuits	1 Circuit
Number of Positions	5 Position
Holding Current	50 mA
Test Current	1 mA
Holding Current (Max)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
