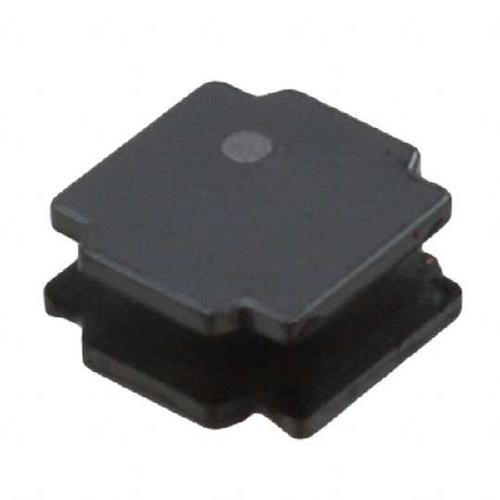

- 22µH Shielded Wirewound Inductor 2.2A 85.8mOhm Max Nonstandard
NR8040T220M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 8mm x 8mm x 4mm |
| Current Rating | 2.2 A |
| Capacitance Tolerance | ±20 % |
| Halogen Free Status | Halogen Free |
| Inductance | 22 µH |
| Self Resonant Frequency | 13 MHz |
| Part Family | NR |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤85.8 mΩ |
| Current Rating (DC) | 2.2 A |
| Operating Temperature (Max) | 120 ℃ |
| Operating Temperature (Min) | 25 ℃ |
| Resistance (DC Max) | 0.066 Ω |
| Show | |
| Size-Length | 8 mm |
| Size-Width | 8 mm |
| Size-Height | 4 mm |
| Operating Temperature | -25℃ ~ 120℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 1000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504500000 |
| ECCN Code | EAR99 |
