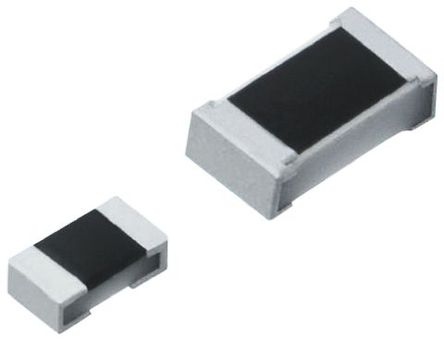

EZAEG3A50AV - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC5332208
Category:
TVS Diode
Package:
0603
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS EZAEG3A50AV ESD Protection Device, 100V, 0603, 2Pins, 30V
Stock Locations:
Availability:
300 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EZAEG3A50AV is an ESD Suppressor Diode for high-speed differential data line such as antenna circuit, HDMI, SATA, USB and DisplayPort. It has good ESD suppression characteristics.
0.05pF Capacitance
Good ESD withstanding

Show

EZAEG3A50AV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	15.0 V
Voltage Rating (AC)	15.0 V
Operating Voltage	30 V
Capacitance	0.1 pF
Breakdown Voltage	15.0 V
Number of Positions	2 Position
Clamping Voltage	100 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	1.6 mm
Size-Width	800 µm
Size-Height	0.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
