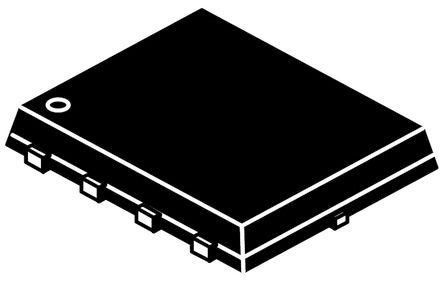

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NRVTS1545EMFST1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	DFN-8
Number of Positions	5 Position
Forward Voltage	600mV @15A
Forward Current	15 A
Max Forward Surge Current (Ifsm)	210 A
Maximum Forward Voltage (Max)	600 mV
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	5.9 mm
Size-Width	4.9 mm
Size-Height	1.05 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
