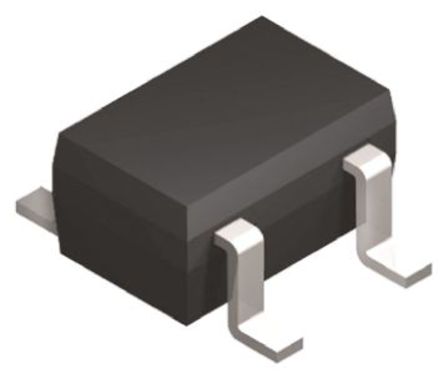

Image is for your reference only,please check specifications for details

NSQA6V8AW5T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC799521
Category:
TVS Diode
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NSQA6V8AW5T2G TVS Diode, NSQA Series, Unidirectional, 5V, 13V, SC-88A, 5Pins
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This tvs NSQA6V8AW5T2G ESD protection device from ON Semiconductor is ideal for protecting your electronic components and circuits from electrostatic discharge. This device"s maximum clamping voltage is 13 V. This ESD diode has a maximum ESD protection device voltage of ±8@Contact Disc kV. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a quad common anode configuration.

Show

NSQA6V8AW5T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Voltage Rating (DC)	6.80 V
Operating Voltage	5 V
Capacitance	15 pF
Power Rating	20.0 W
Halogen Free Status	Halogen Free
Breakdown Voltage	6.8 V
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	5 Position
Power Dissipation	380 mW
Clamping Voltage	13 V
Max Repetitive Reverse Voltage (Vrrm)	5V
Test Current	1 mA
Max Breakdown Voltage	7.1 V
Peak Pulse Power	20 W
Min Breakdown Voltage	6.4 V
Max Reverse Leakage Current (Ir)	0.05uA
Reverse Breakdown Voltage	6.4 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 125℃
Power Dissipation (Max)	380 mW
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
