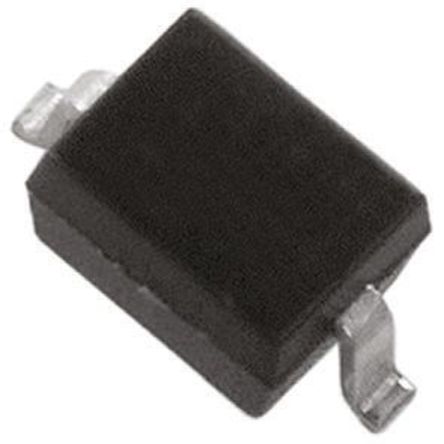

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NSR0240HT1G is a Schottky Barrier Diode optimized for very low forward voltage drop, low leakage current and used in a wide range of DC-DC converter, clamping and protection applications in portable devices. This SOD-323 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements. It is used in LCD and keypad backlighting, camera photo flash, buck and boost DC-DC converter, reverse voltage and current protection, mobile handsets, mp3 players, digital camera and camcorders, notebook PCs & PDAs and GPS.
480mV at 10mA Very low forward voltage drop
0.2A at 25V Low reverse current VR
Power dissipation of 160mW with minimum trace
Very high switching speed
4pF Low capacitance CT
AEC-Q101 qualified and PPAP capable
Halide-free/Pb-free device

Show

NSR0240HT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Voltage	0.71 V
Power Dissipation	270 mW
Thermal Resistance	740℃/W (RθJA)
Reverse recovery time	3 ns
Max Repetitive Reverse Voltage (Vrrm)	40V
Forward Current	250 mA
Max Forward Surge Current (Ifsm)	1 A
Max Reverse Leakage Current (Ir)	0.55uA
Maximum Forward Voltage (Max)	710 mV
Forward Current (Max)	250 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	270 mW
	Show
Size-Length	1.8 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
