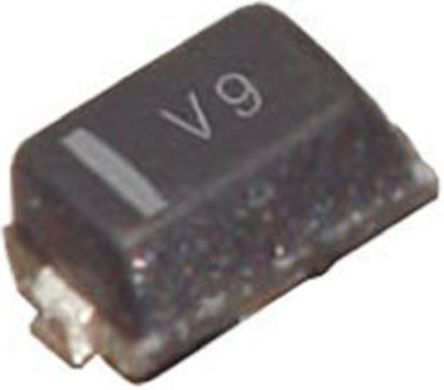

NSR05T40P2T5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC47320383
Category:
Schottky Diode
Package:
SOD-923
Datasheet:
Datasheet 3D Model
Description:
Schottky Barrier Diode, 500mA, 40V Schottky Barrier Diode, 500mA, 40V
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.08

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NSR05T40P2T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	700mV @500mA
Power Dissipation	360 mW
Reverse recovery time	8 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	3 A
Maximum Forward Voltage (Max)	700 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	715 mW
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.43 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
