AD7324BRUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC706963
Category:
Analog to Digital, ADC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7324BRUZ Analog to Digital Converter, Dual, 13Bit, 1MSPS, Dual (+/-), 2.5V, 16.5V, TSSOP
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

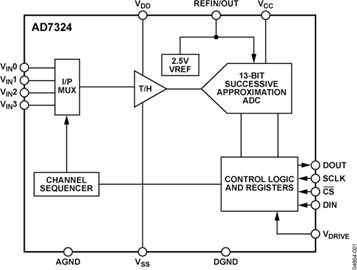

The AD7324BRUZ is a 4-channel 12-bit plus sign successive approximation Analog-to-digital Converter (ADC) designed on the iCMOS process. iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can accept bipolar input signals while providing increased performance, dramatically reduced power consumption. It can accept true bipolar analog input signals. Each analog input channel can be independently programmed to one of the four input ranges. The analog input channels on the converter can be programmed to be single-ended, true differential or pseudo differential. It also allows for external reference operation.
4 Analog input channels with channel sequencer
High analog input impedance
Internal 2.5V reference
High speed serial interface
Power-down modes
iCMOS™ process technology

Show

AD7324BRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Digital Logic Level	SAR
Supply Voltage (DC)	2.50V (min)
Supply Current	900 µA
Number of Circuits	1 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Number of Bits	12 Bit
Power Dissipation	21 mW
Sample Rate	1 Msps
Power Consumption	21 mW
Resolution (Bits)	13.0 Bit
Input Capacitance	13.5 pF
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	31 mW
Number of Input Channels	4 Channel
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
