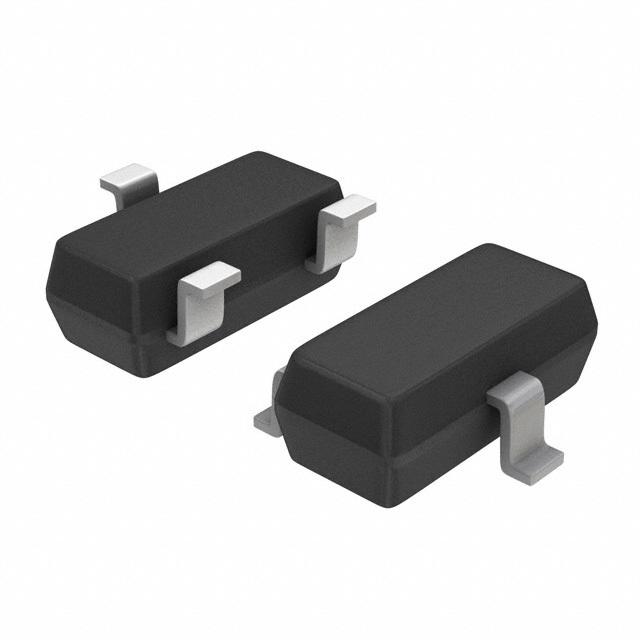

30 V, 2 A, Low VCE(sat) PNP Transistor
ON Semiconductor’s e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important. Typical application are DC−DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players.
Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU’s control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers.
• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Show

NSS30100LT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	100 MHz
Voltage Rating (DC)	-30.0 V
Current Rating	-1.00 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	710 mW
Breakdown Voltage (Collector to Emitter)	30 V
Continuous Collector Current	1A
hFE Min	100 @500mA, 2V
hFE Max	300
Input Power (Max)	310 mW
DC Current Gain (hFE)	80
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	710 mW
	Show
Size-Width	1.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
