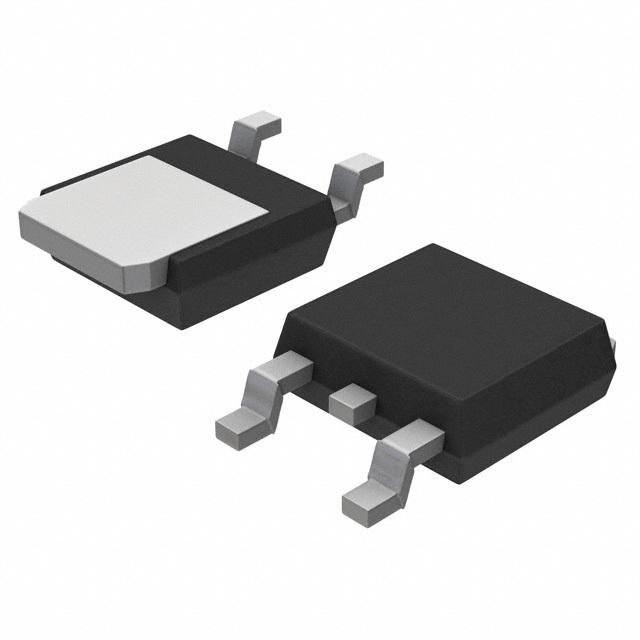

- NSV50150ADT4G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC58807762
-
Category:LED Driver, LED Display Driver
-
Package:TO-252-3
-
Datasheet:Datasheet 3D Model
-
Description:LED Driver, Adjustable Constant Current Regulator, 50V, 150 - 350mA DPAK 150mA
-
Stock Locations:
-
Availability:238 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The adjustable constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents.The CCR turns on immediately and is at 14% of regulation with only 0.5 V Vak. The Radj pin allows Ireg(SS) to be adjusted to higher currents by attaching a resistor between Radj (Pin 3) and the Cathode (Pin 4). The Radj pin can also be left open (No Connect) if no adjustment is required. It requires no external components allowing it to be designed as a high or low-side regulator. The high anode-cathode voltage rating withstands surges common in Automotive, Industrial and Commercial Signage applications. This device is available in a thermally robust package, which is lead-free RoHS compliant and uses halogen-free molding compound. Meets AEC-Q101 standard and UL94-V0 certified.
- Features | | Benefits
- ---|---|---
- | | | | |
- Adjustable up to 350 mA, Wide Operating Voltage Range, Immediate Turn-On, Voltage Surge Suppressing - Protecting LEDs, SBT (SelfBiased Transistor) Technology, Negative Temperature Coefficient, Eliminates Additional Regulation, These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant.
- | |
- High or Low side control
- AEC-Q101 Qualified and PPAP Capable, UL94V0 Certified
- | |
NSV50150ADT4G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Power Dissipation | 4202 mW |
| Output Current (Max) | 350 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 4202 mW |
| Accuracy | ±10 % |
| Input Voltage | 50 V |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
