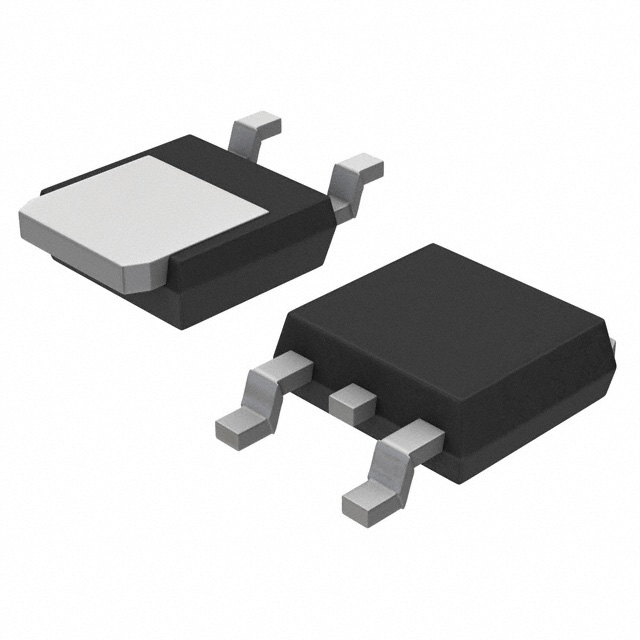

Image is for your reference only,please check specifications for details

Updated at 30/03/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTD3055L170 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Voltage Rating (DC)	60.0 V
Current Rating	9.00 A
Drain to Source Resistance (on) (Rds)	170 mΩ
Polarity	N-Channel
Power Dissipation	1.5 W
Threshold Voltage	2 V
Input Capacitance	275 pF
Gate Charge	10.0 nC
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60.0 V
Breakdown Voltage (Gate to Source)	±15.0 V
Continuous Drain Current (Ids)	9.00 A
Input Capacitance (Ciss)	275pF @25V(Vds)
Input Power (Max)	1.5 W
Power Dissipation (Max)	1.5 W
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	2500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
