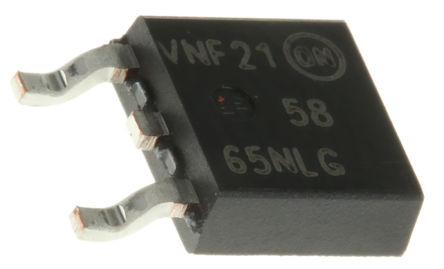

NTD5865NLT4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5361582
Category:
MOSFET, MOSFET Transistor
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET 60V 46A 16mOhm Single N-Channel DPAK Logic Level, DPAK 4 LEAD Single Gauge Surface Mount, 2500-REEL
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.63

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NTD5865NLT4G is a N-channel Power MOSFET features low gate charge, high current capability and fast switching.
100% Avalanche tested
±20V Gate-source voltage
2.1°C/W Junction-to-case (drain) thermal resistance
49°C/W Junction-to-ambient thermal resistance

Show

NTD5865NLT4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.013 Ω
Polarity	N-Channel
Power Dissipation	52 W
Threshold Voltage	1 V
Input Capacitance	1.4 nF
Drain to Source Voltage (Vds)	60 V
Rise Time	12.4 ns
Input Capacitance (Ciss)	1400pF @25V(Vds)
Input Power (Max)	52 W
Fall Time	4.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	71W (Tc)
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
