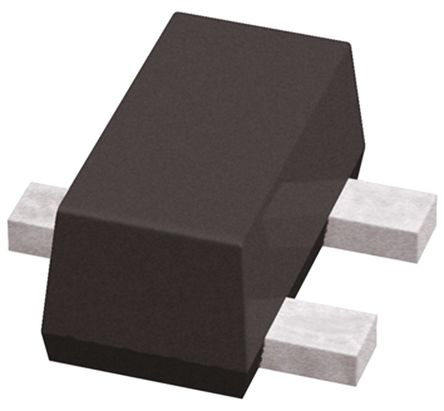

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Low RDS(on) for Higher Efficiency and Longer Battery Life * Small Outline Package (1.6 x 1.6 mm) * SC-75 Standard Gullwing Package * ESD Protected Gate * Pb-Free Packages are Available
NTE4151PT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SC-89-3 |
| Voltage Rating (DC) | -20.0 V |
| Current Rating | -760 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.26 Ω |
| Polarity | N-Channel, P-Channel |
| Power Dissipation | 313 mW |
| Input Capacitance | 156 pF |
| Drain to Source Voltage (Vds) | 20 V |
| Breakdown Voltage (Drain to Source) | 20 V |
| Breakdown Voltage (Gate to Source) | ±6.00 V |
| Continuous Drain Current (Ids) | 760 mA |
| Rise Time | 8.2 ns |
| Input Capacitance (Ciss) | 156pF @5V(Vds) |
| Input Power (Max) | 313 mW |
| Fall Time | 20.4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 313 mW |
| Show | |
| Size-Length | 1.7 mm |
| Size-Width | 0.95 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
