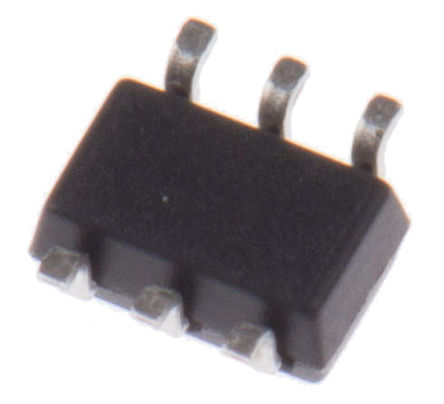

Image is for your reference only,please check specifications for details

NTJD4152PT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1205993
Category:
MOSFET, MOSFET Transistor
Package:
SOT-363-6
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET -20V -0.88A 260mOhm Dual P-Channel SC88 with ESD Protection, SC-88/SC70-6/SOT-363 6 LEAD, 3000-REEL
Stock Locations:
Availability:
1,955 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Mosfet Array 2 P-Channel (Dual) 20V 880mA 272mW Surface Mount SC-88/SC70-6/SOT-363

Show

NTJD4152PT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-363-6
Voltage Rating (DC)	-20.0 V
Current Rating	-880 mA
Number of Channels	2 Channel
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.215 Ω
Polarity	P-Channel
Power Dissipation	272 mW
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	880 mA
Rise Time	6.5 ns
Maximum Forward Voltage (Max)	1.2 V
Input Capacitance (Ciss)	155pF @20V(Vds)
Input Power (Max)	272 mW
Fall Time	3.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	272 mW
	Show
Size-Length	2.2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
