NTLJS3113PT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC41711065
Category:
MOSFET, MOSFET Transistor
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:

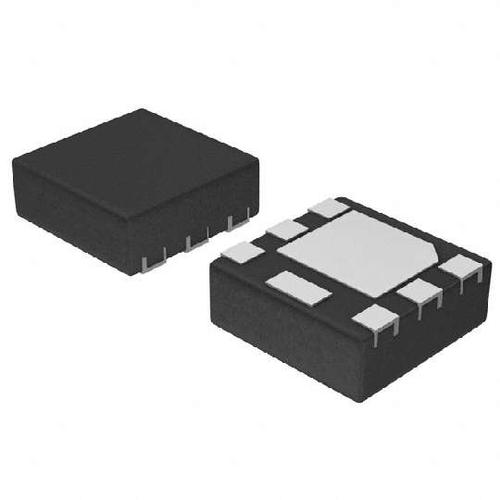

Power MOSFET -20V -7.7A 40mOhm Single P-Channel WDFN6, WDFN6, 2 x 2 x 0.75mm, 0.65mm Pitch, 3000-REEL
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTLJS3113PT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Voltage Rating (DC)	-20.0 V
Current Rating	-7.70 A
Polarity	P-Channel
Power Dissipation	1.9 W
Threshold Voltage	0.67 V
Input Capacitance	1.33 nF
Gate Charge	15.7 nC
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	7.70 A, -5.80 A
Rise Time	17.5 ns
Input Capacitance (Ciss)	1329pF @16V(Vds)
Input Power (Max)	700 mW
Fall Time	56.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	700mW (Ta)
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
