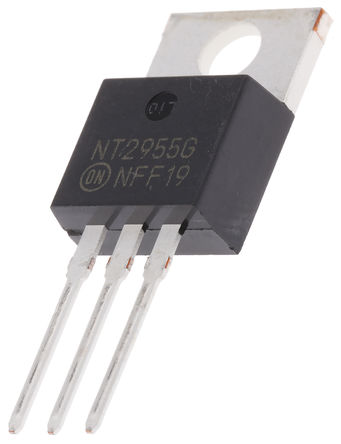

NTP2955G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3420315
Category:
MOSFET, MOSFET Transistor
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET -60V -12A 196mOhm Single P-Channel TO-220, TO-220 3 LEAD STANDARD, 50-TUBE
Stock Locations:
Availability:
154 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.94

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NTP2955G is a -60V Single P-channel Power MOSFET ideal for power supplies and industrial applications.
Low RDS (on)
Rugged performance
Fast switching

Show

NTP2955G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-60.0 V
Current Rating	-12.0 A
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.196 Ω
Polarity	P-Channel
Power Dissipation	2.4 W
Threshold Voltage	4 V
Input Capacitance	700 pF
Gate Charge	14.0 nC
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	12.0 A
Rise Time	41 ns
Input Capacitance (Ciss)	700pF @25V(Vds)
Input Power (Max)	2.4 W
Fall Time	45 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.4W (Ta), 62.5W (Tc)
	Show
Size-Length	10.28 mm
Size-Width	4.82 mm
Size-Height	9.28 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
