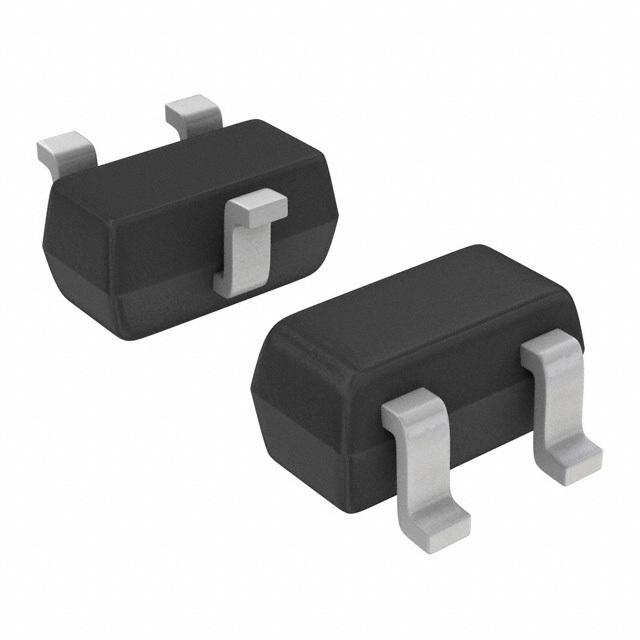

Image is for your reference only,please check specifications for details

Updated at 16/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SC4617 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-75-3
Voltage Rating (DC)	50.0 V
Current Rating	100 mA
Polarity	NPN
Power Dissipation	125 mW
Gain Bandwidth Product	180 MHz
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.1A
hFE Min	120
hFE Max	560
Input Power (Max)	125 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	125 mW
	Show
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.75 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
HTS Code	8541210075
ECCN Code	EAR99
