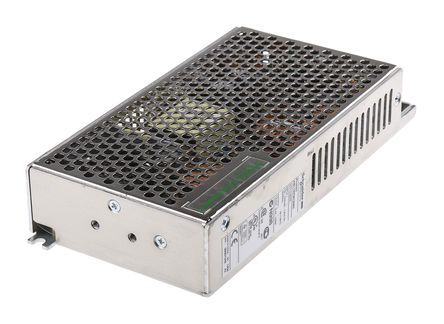

Image is for your reference only,please check specifications for details
- ABL1RPM12083 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC114348929
-
Category:AC to DC Converter, AC/DC Converter
-
Datasheet:Datasheet 3D Model
-
Description:Питание; AC-DC; 12 В; 8.3 Ампера; напряжение входа 85–264 В; встроенное исполнение; Pnl Mnt; 100 Вт; серия ABL <<2>》 Разработано для простых и повторяющихся устройств, специализированные источники питания особенно конкурентоспособны по качеству и цене благодаря своей простоте и компактности. <<3>》 <<4>》 Применение: лифты, дисплейные панели, эскалаторы, машины для мытья автомобилей, печи для производства продуктов питания и т. д. <<5>》 <<6>》 * Напряжение входа: однофазное 100–240 В <<7>》 * Напряжение выхода: регулируемое однофазное 12 и 24 ВDC / 60–240 Вт <<8>》 * Опциональный фильтр против гармоник соответствует стандартам IEC/EN 61000-3-2 <<9>》 * Тепловая защита предусмотрена во всем ассортименте <<10>》 * Защита терминального блока соединения <<11>》 * Сертификация UL CSA <<12>》 * Защита от перегрузок, коротких замыканий и повышенных напряжений <<13>》 * Монтаж с помощью винтов или на рельсах диаметром 35 мм по выбору
-
Stock Locations:
-
Availability:24 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 425.74
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness.
- Applications: Lifts, display panels, escalators, carwash, foodstuff ovens, etc.
- * Input voltage: single-phase 100-240 V
- * Output voltage: regulated single-phase 12 and 24 VDC / 60-240 W
- * Optional anti-harmonics filter conforming to standards IEC/EN 61000-3-2
- * Thermal protection incorporated on the entire range
- * Connection terminal block protection
- * UL CSA certification
- * Protection against overloads, short-circuits and overvoltages
- * Fixing by screw or on 35 mm rail as option
ABL1RPM12083 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel |
| Power Rating | 100 W |
| Number of Outputs | 1 Output |
| Output Voltage | 12 VDC |
| Output Current | 8.3 A |
| Output Power | 100 W |
| Input Voltage (Max) | 264 VAC |
| Input Voltage (Min) | 85 VAC |
| Output Voltage (Max) | 13.2 VDC |
| Output Voltage (Min) | 10.8 VDC |
| Input Voltage | 85VAC ~ 264VAC |
| Show | |
| Weight | 640 g |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
