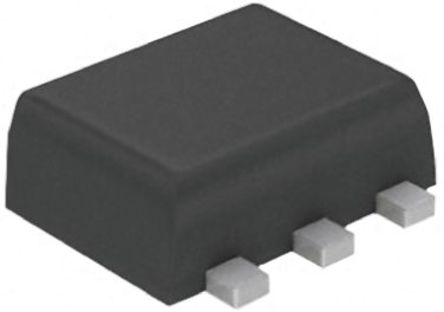

NTZD3152PT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8712635
Category:
MOSFET, MOSFET Transistor
Package:
SOT-563-6
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET -20V -430mA 900mOhm Dual P-Channel SOT-563 with ESD Protection, SOT-563, 6 LEAD, 4000-REEL
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTZD3152PT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-563-6
Voltage Rating (DC)	-20.0 V
Current Rating	-430 mA
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.9 Ω
Polarity	P-Channel, Dual P-Channel
Power Dissipation	280 mW
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Gate to Source)	±6.00 V
Continuous Drain Current (Ids)	430 mA
Rise Time	12 ns
Input Capacitance (Ciss)	175pF @16V(Vds)
Input Power (Max)	250 mW
Fall Time	19 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	280 mW
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
