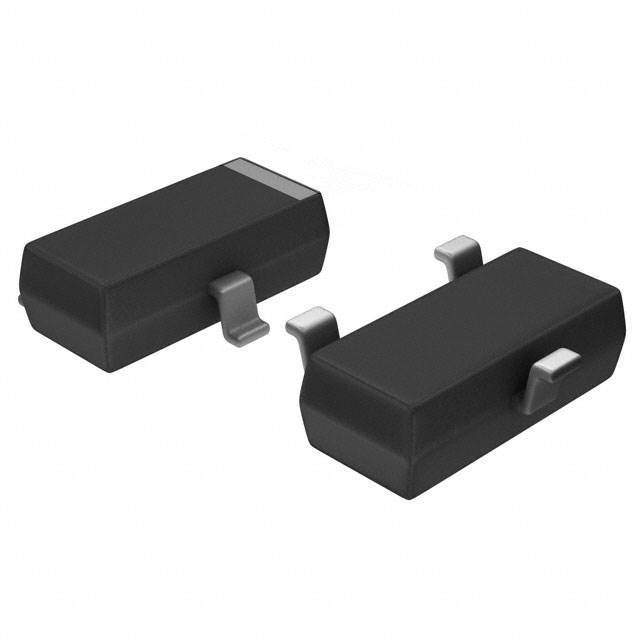

NX7002AKAR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-23-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	6.2 Ω
Polarity	N-CH
Power Dissipation	1.33 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Continuous Drain Current (Ids)	0.19A
Rise Time	7 ns
Input Capacitance (Ciss)	17pF @10V(Vds)
Input Power (Max)	265 mW
Fall Time	14 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	265mW (Ta), 1.33W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
