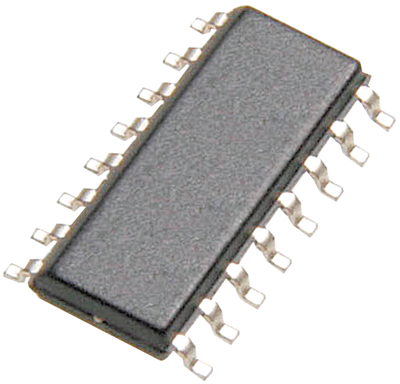

Image is for your reference only,please check specifications for details

OP400GSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC397304
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES OP400GSZ Operational Amplifier, Quad, 4 Amplifier, 500kHz, 0.15V/µs, ± 3V to ± 18V, SOIC, 16Pins
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.35

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The OP400 is the first monolithic quad operational amplifier that features OP77-type performance. Precision performance is not sacrificed with the OP400 to obtain the space and cost savings offered by quad amplifiers.
FEATURES
Low input offset voltage: 150 μV maximum
Low offset voltage drift over –55°C to +125°C: 1.2 pV/°C maximum
Low supply current (per amplifier): 725 μA maximum
High open-loop gain: 5000 V/mV minimum
Input bias current: 3 nA maximum
Low noise voltage density: 11 nV/√Hz at 1 kHz
Stable with large capacitive loads: 10 nF typical
Pin-compatible to LM148, HA4741, RM4156, and LT1014, with improved performance
Available in die form

Show

OP400GSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	15.0 V
Supply Current	600 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	110 dB
Input Capacitance	3.20 pF
Bandwidth	500 kHz
Slew Rate	150 mV/μs
Gain Bandwidth Product	500 kHz
Input Impedance	200 GΩ
Input Offset Voltage	80 µV
Input Bias Current	750 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	0.5 MHz
Minimum CMRR Range	110 dB
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
