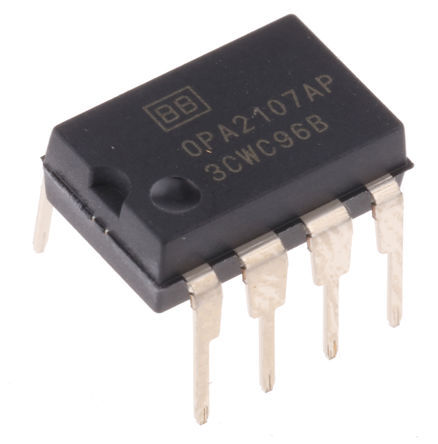

Image is for your reference only,please check specifications for details
- OPA2107AP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2348439
-
Category:Operational Amplifier, OP Amp IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Операционный усилитель, сдвоенный, 2 усилителя, 4.5 МГц, 18 В/мкс, ±10В до ±18В, DIP, 8 выводов
-
Stock Locations:
-
Availability:246 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 18.08
Updated at 28/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- OPA2107AP — это прецизионный сдвоенный операционный усилитель на технологии Difet®. Он применим в широком спектре прецизионных и малошумящих аналоговых схем и может использоваться для улучшения характеристик конструкций, в которых в настоящее время применяются усилители типа BIFET®. OPA2107 изготавливается по запатентованному процессу диэлектрической изоляции (Difet). Это позволяет поддерживать входные токи смещения на очень низком уровне без ущерба для других важных параметров, таких как входное напряжение смещения, дрейф и шум. Лазерная подстройка входных цепей обеспечивает превосходные характеристики по постоянному току. Достигнуты превосходные динамические характеристики, при этом ток покоя не превышает 2,5 мА на усилитель, и усилитель устойчив при единичном усилении.
- 8 нВ/√Гц при 10 кГц — низкий уровень шума
- Устойчив при единичном усилении
- 10 мкВ/°C, максимальный низкий дрейф
- Экологичный продукт, не содержит Sb/Br
- Чувствительное к электростатическому разряду устройство; соблюдайте соответствующие меры предосторожности при обращении с ним.
OPA2107AP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Current | 4.5 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 80 dB |
| Input Offset Drift | 3.00 µV/K |
| Bandwidth | 4.5 MHz |
| Slew Rate | 18.0 V/μs |
| Gain Bandwidth Product | 4.5 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 100 µV |
| Input Bias Current | 4 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Gain Bandwidth | 4.5 MHz |
| Minimum CMRR Range | 80 dB |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 9 V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
