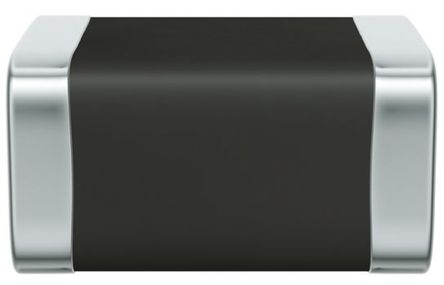

Image is for your reference only,please check specifications for details

B72530E0300K062 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC27632532
Category:
Varistor
Package:
1210
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72530E0300K062 TVS Varistor, 30V, 38V, MLV E Series, 77V, 1210 [3225 Metric], Multilayer Varistor (MLV)
Stock Locations:
Availability:
2,090 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B72530E0300K062 is a surface mount Multilayer Varistor with nickel barrier termination (AgNiSn) suitable for lead-free reflow and wave soldering. This automotive E series ceramic transient voltage suppressor features high energy absorption capability and low leakage current. This varistor is available with PSpice simulation model. It is used for transient overvoltage protection in automotive applications, engine management, airbag, control units, electrohydraulic brake, ABS/ESP, sunroof, load-dump protection and jump-start protection.
High energy absorption capability
Long-term ESD stability
Bidirectional protection
No temperature derating up to 150°C
UL94V-0 Flammability rating
ESD sensitive device, take proper precaution while handling the device.

Show

B72530E0300K062 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	3225
Case/Package	1210
Voltage Rating (DC)	38 V
Voltage Rating (AC)	30 V
Capacitance	1000 pF
Capacitance Tolerance	10 %
Power Rating	10 mW
Clamping Voltage	77 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (DC Max)	38 V
Voltage Rating (AC Max)	30 V
	Show
Size-Length	3.2 mm
Size-Width	2.5 mm
Size-Height	1.7 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
