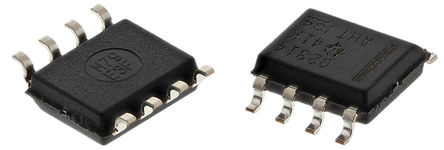

Image is for your reference only,please check specifications for details

OPA2314AID - TI
Manufacturer:
TI
ManyChip's Part#:
MC42446167
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2314AID Operational Amplifier, Dual, 2 Amplifier, 3MHz, 1.5V/µs, 1.8V to 5.5V, SOIC, 8Pins
Stock Locations:
Availability:
66 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2314AID is a low-noise Operational Amplifier represents a new generation of low-power, general-purpose CMOS amplifier. Rail-to-rail input and output swings, low quiescent current (150µA typically at 5VS) combined with a wide bandwidth of 3MHz and very low noise (14nV/√Hz at 1kHz) make this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance. The low input bias current supports applications with MR source impedances. The robust design of the OPA314 device provides ease-of-use to the circuit designer, unity-gain stability with capacitive loads of up to 300pF, an integrated RF/EMI rejection filter, no phase reversal in overdrive conditions and high electrostatic discharge (ESD) protection (4kV HBM). This op-amp is optimized for low-voltage operation as low as 1.8V (±0.9V) and up to 5.5V (±2.75V) and are specified over the full extended temperature range of -40 to 125°C.
14nV/√Hz at 1kHz Low noise
Internal RF/EMI filter
Unity-gain stable
0.5mV Low offset voltage
0.2pA Low input bias current
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

OPA2314AID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	20 mA
Supply Current	150 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	66 dB
Input Offset Drift	1.00 µV/K
Bandwidth	3 MHz
Slew Rate	1.50 V/μs
Gain Bandwidth Product	3 MHz
Thermal Shutdown	No
Input Offset Voltage	500 µV
Input Bias Current	0.2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Minimum CMRR Range	66 dB
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
