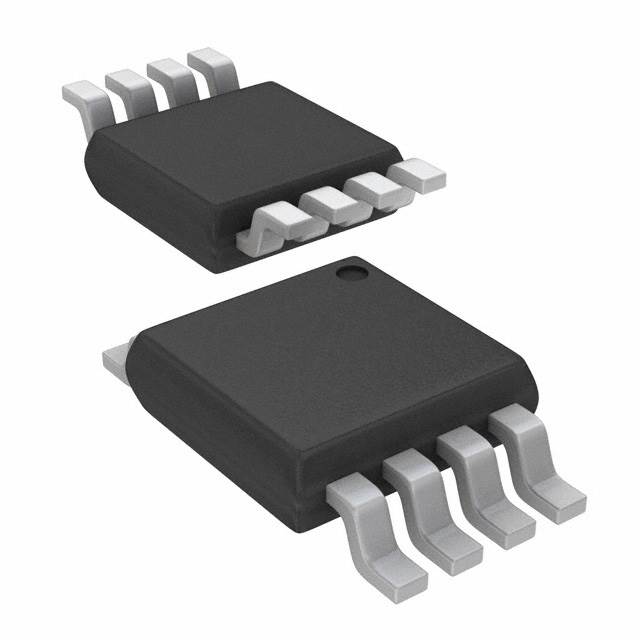

Image is for your reference only,please check specifications for details

OPA2376QDGKRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC36456604
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2376QDGKRQ1 Operational Amplifier, Rail-to-Rail, 1 Amplifier, 5.5MHz, 2V/µs, 2.2V to 5.5V, ± 1.1V to ± 2.75V
Stock Locations:
Availability:
318 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.87

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA376-Q1 family represent a new generation of low-noise operational amplifiers with _e-trim_™, offering outstanding dc precision and ac performance. Rail-to-rail output, low offset (25 µV maximum), low noise (7.5 nV/√Hz), quiescent current of 950 µA (maximum), and a 5.5-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation.
The OPA376-Q1 (single version) is available in MicroSIZE SC70-5, SOT23-5, and SOIC-8 packages. The OPA2376-Q1 (dual) is offered in the SOIC-8 and VSSOP-8 package. The OPA4376-Q1 (quad) is offered in a TSSOP-14 package. All versions are specified for operation from –40°C to +125°C.

Show

OPA2376QDGKRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	760 µA
Number of Circuits	2 Circuit
Common Mode Rejection Ratio	76 dB
Input Offset Drift	320 nV/K
Bandwidth	5.5 MHz
Slew Rate	2.00 V/μs
Gain Bandwidth Product	5.5 MHz
Input Offset Voltage	5 µV
Input Bias Current	.2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	76 dB
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
