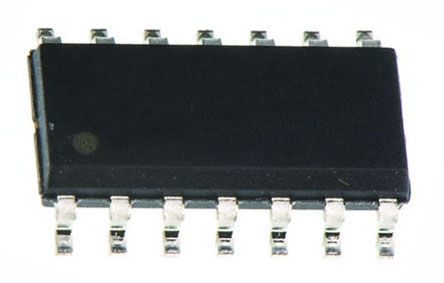

Image is for your reference only,please check specifications for details
- OPA4348AID - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC28410303
-
Category:Operational Amplifier, OP Amp IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Quad, 4 Amplifier, 1MHz, 0.5V/µs, 2.1V to 5.5V, SOIC, 14Pins
-
Stock Locations:
-
Availability:392 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.71
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA4348AID is a quad low-power CMOS Operational Amplifier for use with battery-powered equipment. It features an extended bandwidth of 1MHz and a supply current of 45µA, the OPA348 series is useful for low-power applications on single supplies of 2.1 to 5.5V. Low supply current of 45µA and an input bias current of 0.5pA, make the OPA348 series an optimal candidate for low-power, high-impedance applications such as smoke detectors and other sensors. The extended temperature range of -40 to +125°C over all supply voltages offers additional design flexibility.
- Rail-to-rail input and output
- 45µA Typical low IQ
- 0.5pA Input bias current
- 4µV/°C Typical offset drift
- 82dB Typical CMRR
- Green product and no Sb/Br
OPA4348AID Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Operating Voltage | 2.1V ~ 5.5V |
| Supply Current | 45 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Common Mode Rejection Ratio | 60 dB |
| Input Offset Drift | 4.00 µV/K |
| Bandwidth | 1 MHz |
| Slew Rate | 500 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 0.5 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1 MHz |
| Minimum CMRR Range | 60 dB |
| Supply Voltage | 2.1V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.1 V |
| Show | |
| Size-Length | 8.65 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
