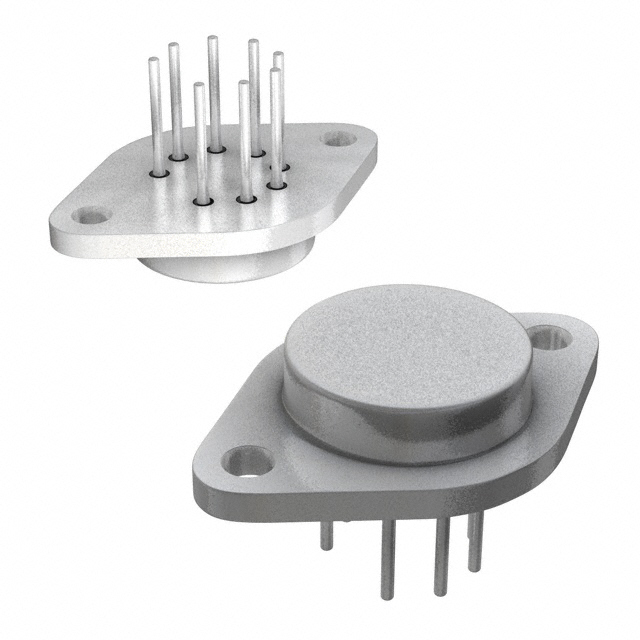

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 1 Circuit TO-3-8
OPA512SM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 9 Pin |
| Case/Package | TO-3-8 |
| Supply Current | 25 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 125000 mW |
| Slew Rate | 2.50 V/μs |
| Gain Bandwidth Product | 4 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 10 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 4 MHz |
| Power Dissipation (Max) | 125000 mW |
| Minimum CMRR Range | 74 dB |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
