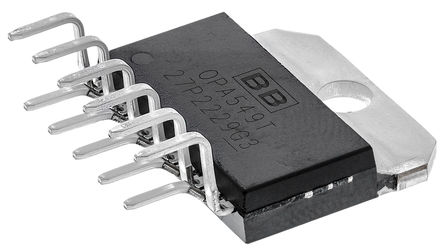

Image is for your reference only,please check specifications for details

OPA549TG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC42331103
Category:
Operational Amplifier, OP Amp IC
Package:
TO-220-11
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA549TG3 Operational Amplifier, Single, 1 Amplifier, 900kHz, 9V/µs, ± 4V to ± 30V, TO-220, 25Pins
Stock Locations:
Availability:
560 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 496.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* HIGH OUTPUT CURRENT: 8A Continuous 10A Peak * WIDE POWER-SUPPLY RANGE: Single Supply: +8V to +60V Dual Supply: ±4V to ±30V * WIDE OUTPUT VOLTAGE SWING * FULLY PROTECTED: Thermal Shutdown Adjustable Current Limit * OUTPUT DISABLE CONTROL * THERMAL SHUTDOWN INDICATOR * HIGH SLEW RATE: 9V/µs * CONTROL REFERENCE PIN * 11-LEAD POWER PACKAGE * APPLICATIONS * VALVE, ACTUATOR DRIVER * SYNCHRO, SERVO DRIVER * POWER SUPPLIES * TEST EQUIPMENT * TRANSDUCER EXCITATION * AUDIO POWER AMPLIFIER

Show

OPA549TG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	TO-220-11
Output Current	8 A
Supply Current	26 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	80 dB
Input Offset Drift	20.0 µV/K
Bandwidth	900 kHz
Slew Rate	9.00 V/μs
Gain Bandwidth Product	900 kHz
Input Offset Voltage	1 mV
Input Bias Current	100 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.9 MHz
Minimum CMRR Range	80 dB
Supply Voltage (Max)	60 V
Supply Voltage (Min)	8 V
	Show
Size-Length	20.02 mm
Size-Width	10.7 mm
Size-Height	4.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
