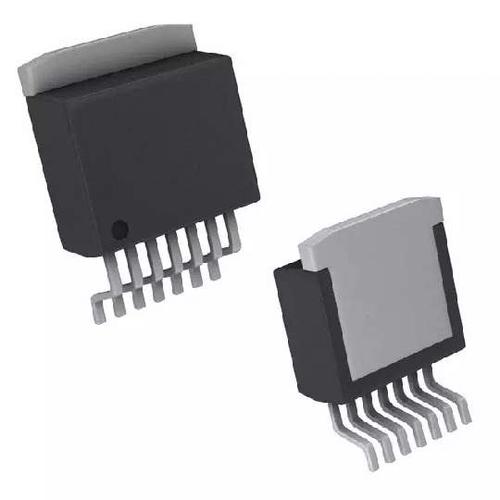

Image is for your reference only,please check specifications for details

OPA551FAKTWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15756637
Category:
Operational Amplifier, OP Amp IC
Package:
TO-263-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 3MHz, 15V/µs, ± 4V to ± 30V, TO-263, 7Pins
Stock Locations:
Availability:
301 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.52

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA551FAKTWT is a high-voltage high-current Operational Amplifier is unity-gain stable and features high slew rate and wide bandwidth. It is suitable for telephony, audio, servo and test applications. The laser-trimmed, monolithic integrated circuits provide excellent low-level accuracy along with high output swing. High performance is maintained as the amplifier swings to its specified limits. The OPA551 is internally protected against over-temperature conditions and current overloads. The thermal shutdown indicator flag provides a current output to alert the user when thermal shutdown has occurred.
200mA Continuous high output current
14nV/√Hz Low noise
Thermal shutdown and output current-limited fully protected
Thermal shutdown indicator
2V From rail wide output swing
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

OPA551FAKTWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-8
Supply Current	7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	7 Position
Common Mode Rejection Ratio	92 dB
Quiescent Current	4.00 A
Input Offset Drift	7.00 µV/K
Bandwidth	3 MHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	1 mV
Input Bias Current	20 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Minimum CMRR Range	92 dB
Supply Voltage (Max)	60 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
