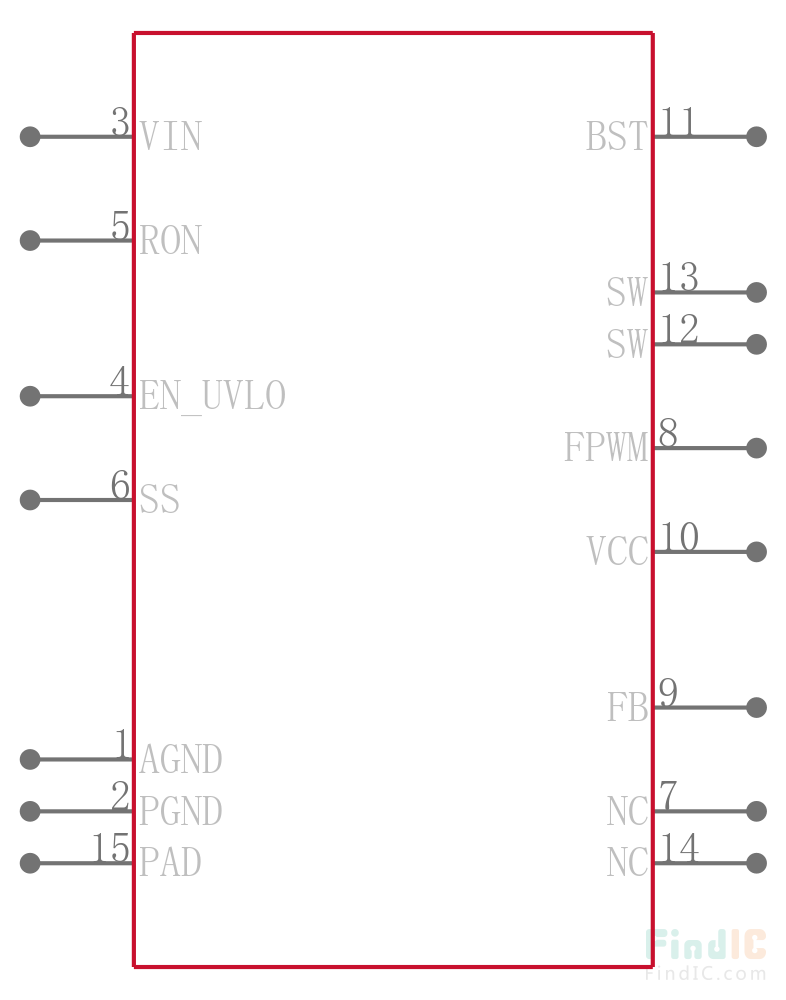

Image is for your reference only,please check specifications for details
- LM5160QPWPRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC9394745
-
Category:Voltage Regulator
-
Package:TSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 65V Step Down Single-Out 2V to 60V 1.5A Automotive 14Pin HTSSOP EP T/R
-
Stock Locations:
-
Availability:37 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.58
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM5160 family is a 65-V, 1.5-A synchronous step-down converter with integrated high-side and low-side MOSFETs. The constant-on-time control scheme requires no loop compensation and supports high step-down ratios with fast transient response. An internal feedback amplifier maintains ±1% output voltage regulation over the entire operating temperature range. The on-time varies inversely with input voltage resulting in nearly constant switching frequency. Peak and valley current limit circuits protect against overload conditions. The under-voltage lockout (EN/UVLO) circuit provides independently adjustable input under-voltage threshold and hysteresis. The LM5160 is programmed through the FPWM pin to operate in continuous conduction mode (CCM) from no load to full load or to automatically switch to discontinuous conduction mode (DCM) at light load for higher efficiency. Forced CCM operation supports multiple output and isolated Fly-Buck applications using a coupled inductor.
LM5160QPWPRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | TSSOP-14 |
| Number of Outputs | 1 Output |
| Output Voltage | 2V ~ 60V |
| Output Current | 1.5 A |
| Quiescent Current | 2.30 mA |
| Number of Regulated Outputs | 1 Output |
| Topology | Buck |
| Input Voltage (Max) | 65 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 60 V |
| Output Voltage (Min) | 2 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
