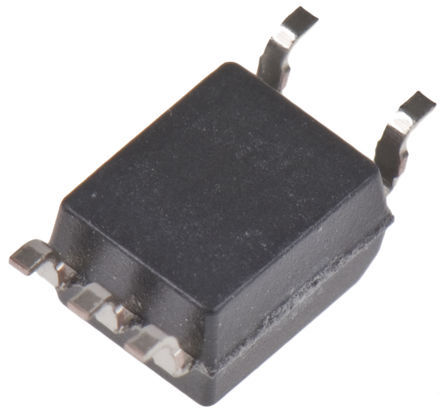

Image is for your reference only,please check specifications for details
- PC400J00000F - Sharp
-
Manufacturer:Sharp
-
ManyChip's Part#:MC1050050
-
Category:Optocoupler, Optoisolator
-
Package:Mini-Flat
-
Datasheet:Datasheet 3D Model
-
Description:Logic IC Output Optocoupler, 1Element, 3750V Isolation, MINI- FLAT, 5Pin
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Logic Output Optoisolator Open Collector 3750Vrms 1 Channel CMTI 5-MFP
PC400J00000F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | Mini-Flat |
| Rise/Fall Time | 100ns, 50ns |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Forward Voltage | 1.1 V |
| Power Dissipation | 150 mW |
| Rise Time | 0.1 µs |
| Isolation Voltage | 3750 Vrms |
| Forward Current | 50 mA |
| Input Current (Min) | 50 mA |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 0.05 µs |
| Fall Time (Max) | 0.5 µs |
| Fall Time (Max) | 0.5 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 150 mW |
| Supply Voltage | 3V ~ 15V |
| Show | |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
