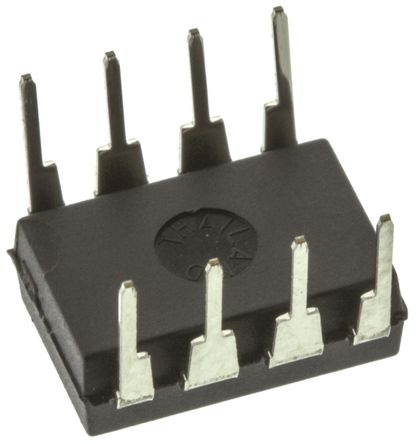

Image is for your reference only,please check specifications for details
- OPA602AP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8450844
-
Category:Operational Amplifier, OP Amp IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 6.5MHz, 35V/µs, ± 5V to ± 18V, DIP, 8Pins
-
Stock Locations:
-
Availability:277 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 14.81
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA602AP is a precision wide bandwidth FET Operational Amplifier for data conversion. Monolithic Difet (dielectrically isolated FET) construction provides an unusual combination of high-speed and accuracy. Its wide-bandwidth design minimizes dynamic errors. High slew rate and fast settling time allow accurate signal processing in pulse and data conversion applications. Wide band-width and low distortion minimize AC errors. All specifications are rated with a 1kR resistor in parallel with 500pF load. The OPA602 is unity-gain stable and easily drives capacitive loads up to 1500pF. Laser-trimmed input circuitry provides offset voltage and drift performance normally associated with precision bipolar op amps. Difet construction achieves extremely low input bias currents (1pA maximum) without compromising input voltage noise. The OPA602"s unique input cascade circuitry maintains low input bias current and precise input characteristics over its full input common-mode voltage range.
- Unity-gain stable
- Continuous output short-circuit to ground (+25°C)
- ±250µV Maximum low offset
- ±1pA Maximum low bias current
- 1µs to 0.01% Fast settling time
- 1000mW Internal power dissipation (TJ
- Green product and no Sb/Br
OPA602AP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Operating Voltage | 10V ~ 36V |
| Supply Current | 3 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 1 W |
| Common Mode Rejection Ratio | 75 dB |
| Input Offset Drift | 3.00 µV/K |
| Bandwidth | 6.5 MHz |
| Slew Rate | 35.0 V/μs |
| Gain Bandwidth Product | 6.5 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 2 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Gain Bandwidth | 6.5 MHz |
| Power Dissipation (Max) | 1000 mW |
| Minimum CMRR Range | 75 dB |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
