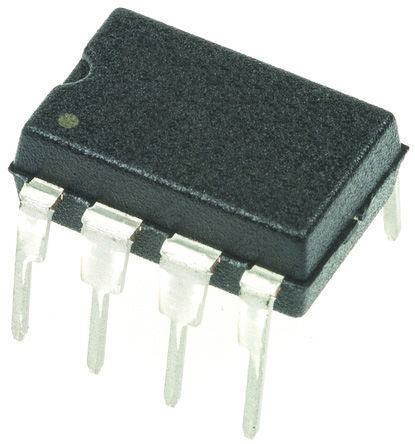

Image is for your reference only,please check specifications for details
- OPA606KP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5007323
-
Category:Operational Amplifier, OP Amp IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 13MHz, 30V/µs, ± 5V to ± 18V, DIP, 8Pins
-
Stock Locations:
-
Availability:270 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.53
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA606KP is a monolithic dielectrically-isolated FET (Difet®) Operational Amplifier features wider bandwidth and lower bias current than BIFET® LF156A amplifier. Bias current is specified under warmed-up and operating conditions, as opposed to a junction temperature of +25°C. Laser-trimmed thin-film resistors offer improved offset voltage and noise performance. The OPA606 is internally compensated for unity-gain stability.
- 10pA at TA=+25°C Maximum low bias current
- 500µV Maximum low offset voltage
- 0.0035% at 10kHz Typical low distortion
OPA606KP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Operating Voltage | 10V ~ 36V |
| Supply Current | 6.5 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 500 mW |
| Common Mode Rejection Ratio | 80dB ~ 90dB |
| Input Offset Drift | 3.00 µV/K |
| Bandwidth | 13 MHz |
| Slew Rate | 30.0 V/μs |
| Gain Bandwidth Product | 12 MHz |
| Input Offset Voltage | 300 µV |
| Input Bias Current | 8 pA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 12 MHz |
| Power Dissipation (Max) | 500 mW |
| Minimum CMRR Range | 78 dB |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
