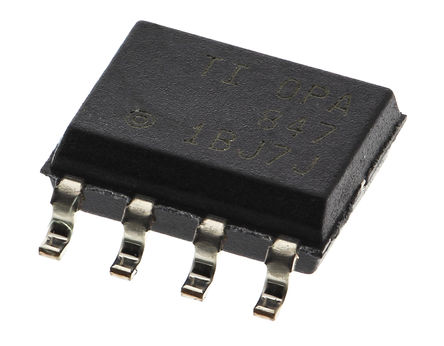

Image is for your reference only,please check specifications for details

OPA847ID - TI
Manufacturer:
TI
ManyChip's Part#:
MC13302600
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 3.9GHz, 950V/µs, ± 5V to ± 6V, SOIC, 8Pins
Stock Locations:
Availability:
1,463 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.39

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The OPA847 combines very high gain bandwidth and large signal performance with an ultra-low input noise voltage (0.85nV/√Hz) while using only 18mA supply current. Where power savings is critical, the OPA847 also includes an optional power shutdown pin that, when pulled low, disables the amplifier and decreases the supply current to < 1% of the powered-up value. This optional feature may be left disconnected to ensure normal amplifier operation when no power down is required.
FEATURES
HIGH GAIN BANDWIDTH: 3.9GHz
LOW INPUT VOLTAGE NOISE: 0.85nV/√Hz
VERY LOW DISTORTION: –105dBc (5MHz)
HIGH SLEW RATE: 950V/µs
HIGH DC ACCURACY: VIO< ±100µV
LOW SUPPLY CURRENT: 18.1mA
LOW SHUTDOWN POWER: 2mW
STABLE FOR GAINS ≥12
APPLICATIONS
HIGH DYNAMIC RANGE ADC PREAMPS
LOW NOISE, WIDEBAND, TRANSIMPEDANCE AMPLIFIERS
WIDEBAND, HIGH GAIN AMPLIFIERS
LOW NOISE DIFFERENTIAL RECEIVERS
ULTRASOUND CHANNEL AMPLIFIERS
IMPROVED UPGRADE FOR THE OPA687, CLC425, AND LMH6624

Show

OPA847ID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	75 mA
Supply Current	18.1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	95 dB
Quiescent Current	18.9 A
Input Offset Drift	1.50 µV/K
Bandwidth	3.9 GHz
Slew Rate	950 V/μs
Gain Bandwidth Product	3.9 GHz
Input Offset Voltage	100 µV
Input Bias Current	19 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3900 MHz
Minimum CMRR Range	95 dB
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
