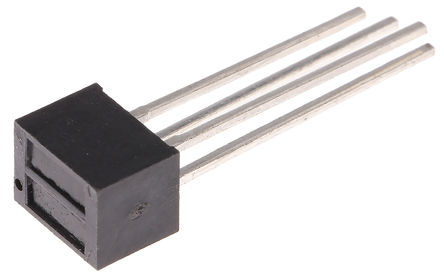

Image is for your reference only,please check specifications for details

OPB706B - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC17456964
Category:
Photoelectric Sensor
Package:
DIP-4
Datasheet:
Datasheet 3D Model
Description:
Sensor, Reflective, Analog Output, 1.27mm, 24V, Through Hole, 25mA Max
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPB706B series Reflective Object Sensor that consists of an infrared Light Emitting Diode (LED) and an NPN silicon Phototransistor mounted "side-by-side" on parallel axes in a black plastic housing. On the sensor, the LED and Phototransistor are molded using dark infrared transmissive plastic to reduce ambient light noise. The Phototransistor, responds to light from the emitter when a reflective object passes within its field of view of the device.
Phototransistor output
Unfocused for sensing diffuse surface
Plastic housing
Designed for use with PCB or connectors

Show

OPB706B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Operating Voltage	1.70 V
Output Voltage	24.0 V
Forward Voltage	1.7 V
Wavelength	935 nm
Input Current	20.0 mA
Power Dissipation	75 mW
Breakdown Voltage (Collector to Emitter)	24 V
Forward Current	50 mA
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75 mW
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	ECL99
