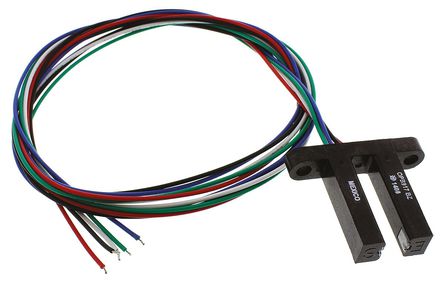

Image is for your reference only,please check specifications for details

OPB917BZ - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC41539789
Category:
Photoelectric Sensor
Package:
Pre-Wired
Datasheet:
Datasheet 3D Model
Description:
OPTEK TECHNOLOGY OPB917BZ Transmissive Photo Interrupter, 10K Pullup, Panel / Chassis, 5.08mm, 1.27mm, 50mA, 2V
Stock Locations:
Availability:
93 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**OPB960, OPB970, OPB980 and OP990 Photologic Series Slotted Optical Switches**
This family of Photologic® slotted optical switches, from Optek Technology, include a variety of options from a standard housing. These non-contact slotted optical switches have a range of different slot widths, output logic states, output driver circuits, aperture widths, aperture surfaces and mounting tab locations. There is also a combination of PCB mounted or wire lead options. The device housing is an opaque plastic which reduces sensitivity to both visible and near IR light that could effect operation. The devices with a covered aperture offer protection against dust whilst open aperture offers better protection against ambient light interference. Suitable applications for the OPB960, OPB970, OPB980 and OPB990 slotted optical switches include; speed/direction indication, rotary encoders, mechanical switch replacement, mechanical limit indication, printers and sliding door automotive.

Show

OPB917BZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis, PCB
Number of Pins	5 Pin
Case/Package	Pre-Wired
Supply Voltage (DC)	12.0 V, 16.0 V (max)
Voltage Rating (DC)	35.0 V
Output Voltage	35.0 V, 14.5 V
Supply Current	7 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Forward Voltage	1.3 V
Wavelength	880 nm
Input Current	20.0 mA
Peak Wavelength	880 nm
Power Dissipation	100 mW
Rise Time	50 ns
Forward Current	50 mA
Forward Current (Max)	50 mA
Fall Time	50 ns
Fall Time (Max)	50 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
Supply Voltage	4.5V ~ 16V
	Show
Size-Length	30.73 mm
Size-Width	6.35 mm
Size-Height	25.65 mm
Operating Temperature	-40℃ ~ 80℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
